Product Description
Base for additional Remote Extender / Splitter audio / video that can extend VGA video and audio signals using Cat5e / 6 with internal cross, up to a maximum distance of 300 m.
Supports VGA resolution up to 1920 x 1200
Provides a sharp, clear signal with gain adjustments and the peak
Easy to install - requires no configuration

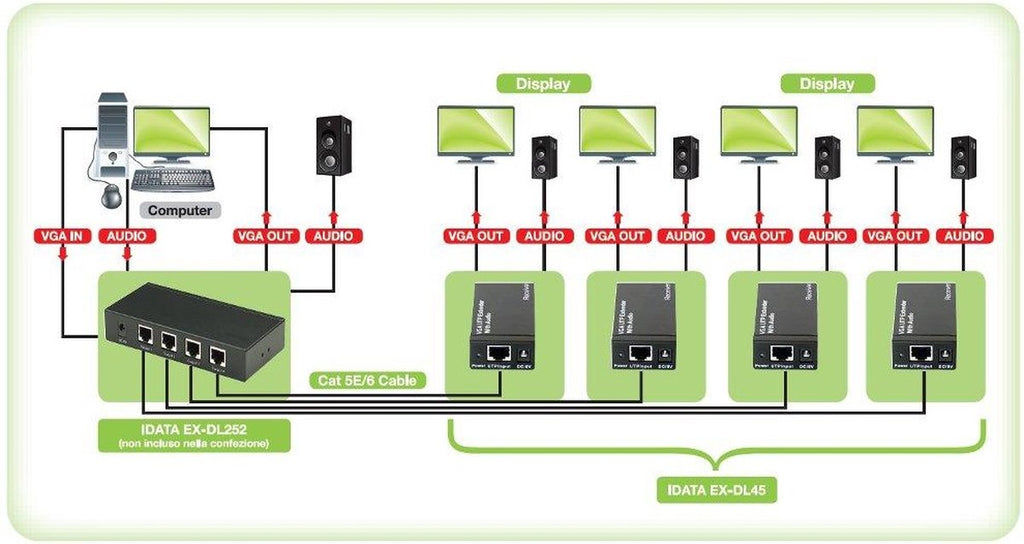

Available optional model IDATA EX-DL252, Extender / Splitter with 4 doors
Features
Receiver that allows you to extend the transmission range up to 300m

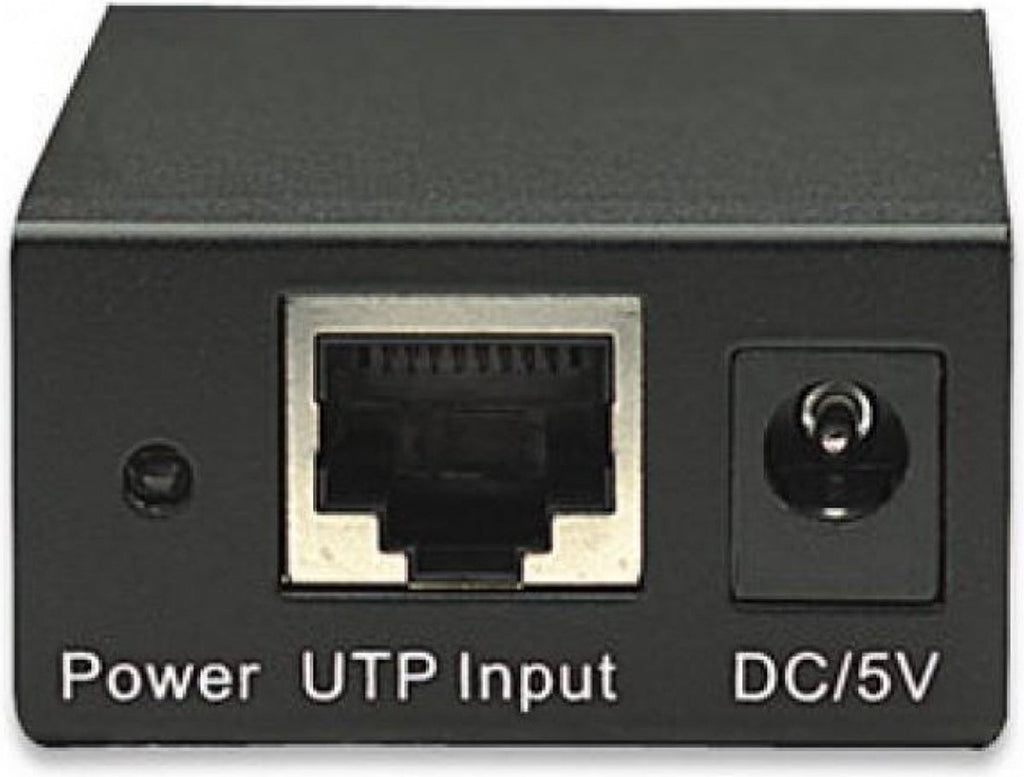

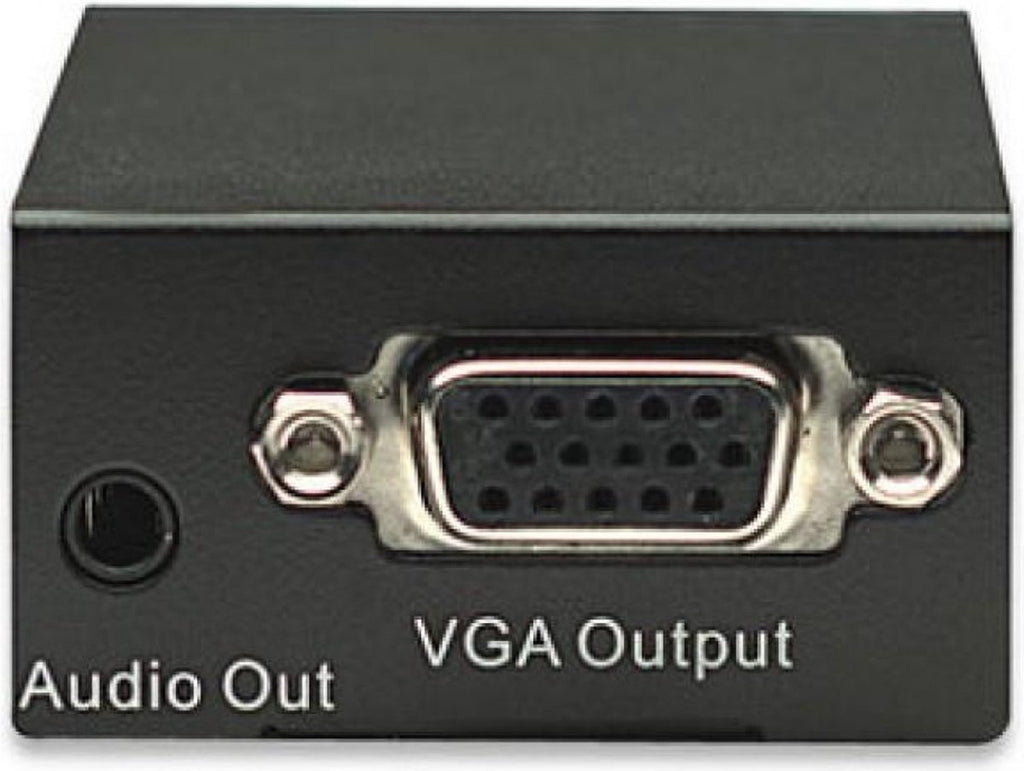

Connections: 1 x RJ45, 1 x HD15 F Output, 1 x audio jack female 3.5 '
Supports standard resolutions up to 1920 x 1200, and signals such as VGA, SVGA, Multisync,
Supported resolutions: 640X480, 800X600, 1024X768, 1280X720, 1280x768, 1280X960, 1280X1024, 1600x900, 1600X1200, 1920X1080, 1920X1200
Dimensions: 100 x 65 x 25.5 mm
Weight: 385 g
Power supply included: 5V 2A 5W
Package Contents

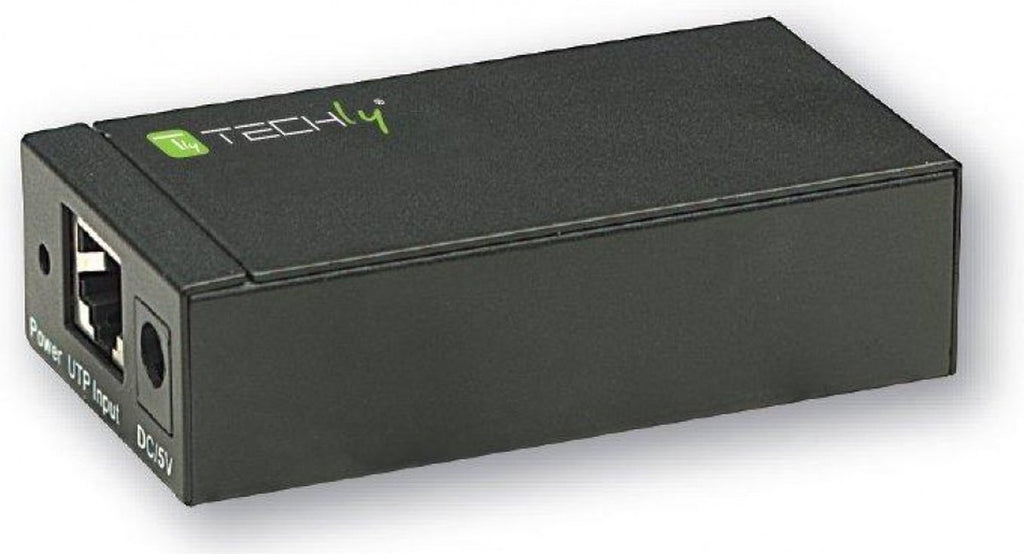

Base Remote Splitter / Extender VGA Cat5e / 6
Power supply 5V 2A
Instruction Manual
| Product Specificaties | |
|---|---|
| Address of Responsible Economic Operator in the EU | Deze informatie volgt nog / Ces informations suivront bientôt |
| Appearance Name | Physical |
| CE Marking | Zichtbaar |
| Cable Length | 300 |
| Colour Group | Zwart |
| Colour | Zwart |
| Connections | RJ45 & VGA (D-Sub) |
| Description |
Product Description Features Package Contents |
| E-mail Address of Responsible Economic Operator in the EU | Deze informatie volgt nog / Ces informations suivront bientôt |
| Family Name | Techly IDATA EX-DL45 video splitter |
| First Connection | RJ45 |
| Height | 6 |
| Length | 12 |
| Mpn | IDATA EX-DL45 |
| Name of Responsible Economic Operator in the EU | Deze informatie volgt nog / Ces informations suivront bientôt |
| Number of Products in Package | 1 |
| Phone Number of Responsible Economic Operator in the EU | Deze informatie volgt nog / Ces informations suivront bientôt |
| Product Group | PC Acc |
| SEO Slug | techly-idata-ex-dl45-video-splitter-vga |
| Second Connection | VGA (D-Sub) |
| Title | Techly Extra Receiver Vga Extenders Over Cat5E Cab 300M |
| Trade Name and Contact Address of Manufacturer or Importer in EU | Techly |
| Type of Cable | Converter |
| VR Optional | Niet geschikt voor VR |
| Warranty Exceptions | fysieke schade |
| Warranty Type | Carry-in |
| Warranty Validity Time | 1 jaar |
| Weight | 320 |
| Width | 17 |
